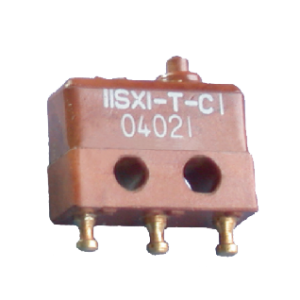

11SX1 T C

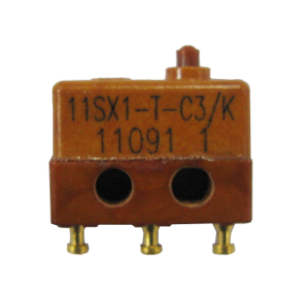

11SX1 T C1
11SX1 T C3

11SX1-T-C Series

11SX1-T-C Series Aviation & Military Micro Switch

1. Small size, light weight, large load capacity;
2. With instantaneous action function, the action is sensitive and the accuracy is high;
3. The minimum differential travel range is 0.051mm max;
4. Products using gold alloy contacts are suitable for products with low power or special environments;
5. Electrical life up to 10,000-25,000 cycles.

Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809A-97 micro switch general technical specification (part), 11SX1-TC Series micro switch special technology Specification (internal)

Category:

11SX1-T-C Series Micro Switch Specifications
11SX1-T-C 11SX1-T-C1 11SX1-T-C3
Electrical Load Resistance – – 28VDC、0.02A
115VAC(50Hz)、0.02A
28 VDC、100mA
5 VDC、10mA
Electrical Load Inductive 15～28VDC、

3A (L=7mH)

 28.5× (1±10%) VDC、

3A (L=7mH)

 28VDC、0.02A (L=7mH )
Pre-travel PT(mm) ≤0.51
Overtravel OT(mm) ≥0.1
Differential Travel DT(mm) ≤0.13
Operating Force OF(N) ≤1.4 ≤2
Releasing Force RF(N) ≥0.27 ≥0.35
Operating Temp.(℃) -55～+135 -55～+150 -65～+125
Weight (g) ≤1.5
Electric Life (cycles) 11000 8400 (Test temperature: 150℃) 25000
Insulation Resistance (normal) MΩ ≥1000
Insulation Resistance (damp heat) MΩ ≥10
Dielectric Withstand Voltage (normal) VAC 500 1000
Salt Spray (h) 48 96
