1JB6-1

1JB6-1 Space & MIL-Spec Relay

  • This product is a high-voltage DC magnetic holding relay designed by our company. It can switch the load of DC 110 Vd.c. to fill the blank of domestic and foreign similar switching function relays. It can be used for the conversion of military equipment circuits such as satellites, spacecraft, rockets, missiles, etc.

1JB6-1 Miniature Magnetic Latching Relays

Environmental Characteristics

No. Parameter Environmental Specification
1 Quality Grade Ⓙ, (G), G5B, G5B+
II IV
2 Temperature Range (℃) -55~85
3 Relative Humidity (40±2) ℃, 90%~95%
4 Low Pressure (kPa) 0.67~0.27
5 Vibration (Hz) 10~2000
(m/s2) 147 196
6 Random Vibration ((m/s2)2/Hz) 10 20
7 Shock (m/s2) 490 735
8 Acceleration (m/s2) 490 735



Main Characteristics

Contact Arrangement Primary: SPDT

Secondary: SPDT

Operating Time (ms) ≤20
Coil Power(W) 2.9 Release Time (ms)
Leak Rate (Pa.cm3/s) ≤1×10-3 Load Ratings Resistive Primary: 6A, 110V d.c.

Secondary: 2A, 28V d.c.

Contact Resistance(Ω) Initial ≤0.05 Low Level 10 µA~50 µA, 10 mV~50mV
After Life ≤0.1 Life Time (Cycles) 2×104
Insulation Resistance(MΩ) Normal ≥500(500Vd.c.) Overload Rating Primary: 12A, 110V d.c.
High Temp./Humidity ≥10(500Vd.c.)
Dielectric Strength

(Vr.m.s)(50Hz)

Normal ≥500 Weight(g) ≤75
Low pressure ≥200



Electrical Specification

Specification No. Coil Voltage 25℃ Entire Temperature Range
Normal Max Coil resistance (Ω)

(1±10%) Ω

Operating Voltage max Release Voltage (min) Operating Voltage max Release Voltage(min)
028 28 30 270 18 24



Dimensions

Circuit Diagram

Resistive Load Diagram

1JB6 1 Dimensions

  • The 4, 5, and 6 leads are auxiliary contact terminals
  • The 1, 2, and 3 leads are primary contact terminals

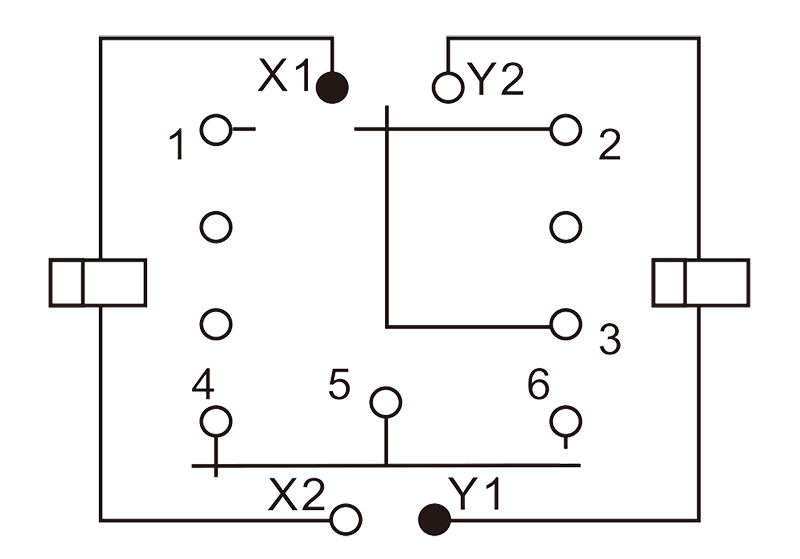

1JB6 1 Circuit Diagram 1JB6 1 Resistive Load Diagram



Order Mark

  • G and General Military Products

Example: 1JB6-1 /IV 28 B

1JB6-1 / IV 28 B
Product model Environmental rating Coil voltage Mounting style



  • G5B and G5B+

Example: 1JB6-1 /28 B /G5B

1JB6-1 / 28 B / G5B
Product mode Coil voltage Mounting style Quality level

Detailed Specifications: Q/RYJ01106-2006
