1JG5-1

1JG5-1 Space & MIL-Spec Solid State Relay

  1. Input and output transformer isolation
  2. Power MOSFET output
  3. Fast switching speed
  4. Strong anti-overload capability
  5. High reliability
  6. Standard: RY4.546.001JT
Category:

1JG5-1 DC Solid State Relay

Standard

RY4.546.001JT



Applications

Suitable for defense and industrial control fields, such as computer interfaces, digital circuit interfaces, signal transmission, numerical control equipment and measuring instruments. It is especially suitable for environments with harsh environments.

Technical Parameters Min. Typ. Max. Unit
Input Parameters
Input voltage 12 V 4 5 7 Vd.c.
5 V 10 28 32 Vd.c.
Input current 6 16 mA
Guaranteed turn-on voltage 12 V 9 Vd.c.
5 V 3.6
Guaranteed turn-off voltage 12 V 3 Vd.c.
5 V 1.5
Switch On time 60 μ s
Switch off time 1000 μ s
Reverse polarity 12 V 14 Vd.c.
5 V 7
Output parameters
Number of output circuit groups 1H (1 group N.O.)
Output current 1×10-4 5.0 A
Output voltage 1 30 Vd.c.
Output voltage drop 0.30 Vd.c.
Output leakage current 10 μ A
Overload 10.5 A
Transient Voltage 60 Vd.c.
Electrical insulation parameters
Insulation resistance 100
Dielectric withstand voltage 750 Vr.m.s.
Isolated capacity 25 pF
Environmental parameters
Seal leak rate 5×10-1 Pa·cm3/s
Random vibration 30
10~2000
(m/s2)2/Hz, Hz
Constant acceleration 980 m/s2
Shock 980, 6 m/s2, ms
Storage temperature -55~125
Operating temperature -55~105
Other parameters
Weight 15 g



Figure 1. Input current vs. Input voltage curve Figure 2. Maximum output current vs. ambient temp.
1JG5 1 Figure 1. Input current vs. Input voltage curve 1JG5 1 Figure 2. Maximum output current vs. ambient temp
Figure 3. output voltage drops vs. temperature curve Figure 4. Peak Surge Current vs. Surge Current Duration
1JG5 1 Figure 3. output voltage drops vs. temperature curve 1JG5 1 Figure 4. Peak Surge Current vs. Surge Current Duration



Mechanical drawings

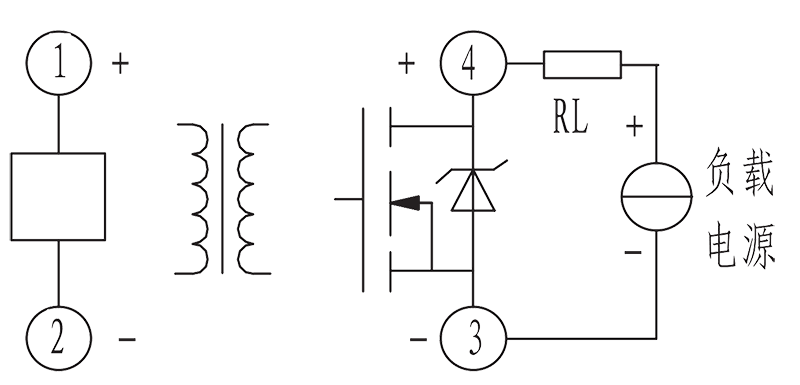

Bottom view Circuit

1JG5 1 Mechanical drawings 1JG5 1 Bottom view Circuit



Order Mark

Example: 1JG5-1

1 JG 5 1
Number of outputs Solid relay main name Rated output current Design Number

Note: Please specify the screening level (Y or W) or special demands when ordering.
