2JB1-911M2

2JB1-911M2 Space & MIL-Spec TO-5 Relay

The 2JB1-911M2 surface mount Centigrid® relay is an ultraminiature, hermetically sealed, armature relay for commercial applications. Its low-profile height and grid spaced terminals make it an ideal choice where extreme packaging density and/or close PC board spacing are required. The specially formed leads are pre-tinned to make the relays ideal for all types of surface-mount. Unique construction features and manufacturing techniques provide overall high reliability and excellent resistance to environmental extremes. The 2JB1-911M2 relay has an internal discrete silicon diode for coil transient suppression.

Category:

Environmental Characteristics

Environmental Specifications
Environment Grade V
Temperature Range (℃) -65~+125
Relative Humidity (40±2) ℃, 90%~95%
Vibration (Hz) 10~3000
(m/s2) 294
Random Vibration (m/s2)2/Hz) 40
Shock (m/s2) 980
Acceleration (m/s2) 980

Electrical Characteristics

Contact Arrangement DPDT Operate Time (ms) ≤2.0
Coil Operating Power (W) 0.4 Energize Pulse-Width (ms) ≥8.0
Leak Rate (atm.cm3/s) ≤1 X 10-9 Contact Load Ratings Resistive 1.0A, 28V d.c.
Contact Resistance (Ω) Initial ≤0.1
After life ≤0.2 Low level 10µA~50µA, 10mV~50mV
Insulation Resistance (MΩ) 25℃ ≥10000 (500V d.c.)
125℃ ≥1000 (500Vd.c.)
Dielectric Strength Vr.m.s.(50Hz) Normal ≥500 Contact Life Ratings 1 X 105Cycles
Low pressure ≥125 Contact Overload Rating DC, 2.0A, 28V d.c., 100 Cycles
Mass (g) ≤1.62 Reverse Leakage Current

≤1mA

(1.5 Dynameter Coil Voltage)

Reverse Electromotive Force (V) ≤1.5 Dynameter Coil Voltage



Detailed Electrical Specifications (-65°C to 125°C) Vd.c.

Coil Code Coil Voltage 25℃ -65℃ to 125℃
Nominal Maximum Coil Resistance (1±10%) Ω Pick-up Voltage max Pick-up Voltage min Pick-up Voltage max Pick-up Voltage min
005 5 6.0 61 3.3 4.5
006 6 8.0 120 4.0 5.0
009 9 12.0 280 6.0 7.5
012 12 16.0 500 8.0 10.0
018 18 24.0 1130 12.0 15.0
027 27 32.0 2000 18.0 23.0



Dimensions

Connection Diagram

Resistive Load

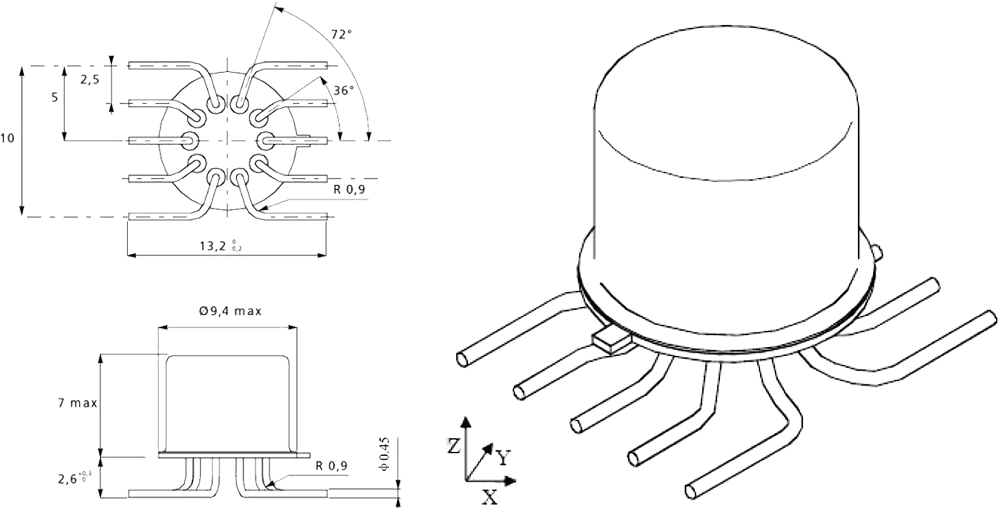

2JB1 911M2 dimension e1602948022500

NOTE: Sensitivity direction of vibration: Z

2JB1 911M2 Connection Diagram e1602948046285

Viewed from terminals side

2JB1 911M2 Resistive Load



Order mark

Example: 2JB1-911M2-027 Q/RY.J01331-2015

2JB1-911M2 027 Q/RY.J01331-2015
Relay Series Coil Code Detailed Specification Number
