4JG2-2 DC Type Solid State Relay
Standard
Q/RY.J01131.12-2008
Applications
Suitable for defense and industrial control fields, such as computer interfaces, digital circuit interfaces, signal transmission, numerical control equipment and measuring instruments. It is especially suitable for redundant design and is suitable for environments with harsh environments.
Description
- Four sets of inputs and outputs are independent of each other and can be independently controlled. The output terminals can be used in series and parallel redundancy.
- Overload can be made according to special requirements.
| Technical Parameters | Min. value | Typ. value | Max. value | Unit | ||
| Input Parameters | ||||||
| Input voltage | (005) | 3 | 5 | 7 | Vd.c. | |
| (028) | 10 | 28 | 32 | Vd.c. | ||
| Input current | (005) | 8 | 10 | mA | ||
| (0028) | 8 | 10 | mA | |||
| Guaranteed turn-on voltage | (005) | 3 | Vd.c. | |||
| (0028) | 10 | |||||
| Guaranteed turn-off voltage | (005) | 1 | Vd.c. | |||
| (0028) | 4 | |||||
| Switch On time | 50 | μ s | ||||
| Switch off time | 500 | μ s | ||||
| Reverse polarity | (005) | 7 | Vd.c. | |||
| (0028) | 32 | |||||
| Output parameters | ||||||
| Number of output circuit groups | 4SPST (4 groups N.O.) | |||||
| Output current | 1×10-4 | 2.0 | A | |||
| Output voltage | 1 | 50 | Vd.c. | |||
| Output voltage drop | 0.2 | Vd.c. | ||||
| Output leakage current | 10 | μ A | ||||
| Transient voltage | 70 | Vd.c. | ||||
| Overload | 7.5 | A | ||||
| Electrical insulation parameters | ||||||
| Insulation resistance | 500 | MΩ | ||||
| Dielectric withstand voltage | 500 | Vr.m.s. | ||||
| Isolated capacity | 25 | pF | ||||
| Environmental parameters | ||||||
| Seal leak rate | 1×10-1 | Pa·cm3/s | ||||
| Random vibration | 40 10~2000 |
(m/s2)2/Hz, Hz | ||||
| Constant acceleration | 1470 | m/s2 | ||||
| Shock | 1470, 6 | m/s2, ms | ||||
| Storage temperature | -55~125 | ℃ | ||||
| Operating temperature | -55~105 | ℃ | ||||
| Other parameters | ||||||
| Weight | 20 | g | ||||
| Figure 1a. Input current vs. Input voltage (5 V) | Figure 1b. Input current vs. Input voltage (28 V) |
 |
 |

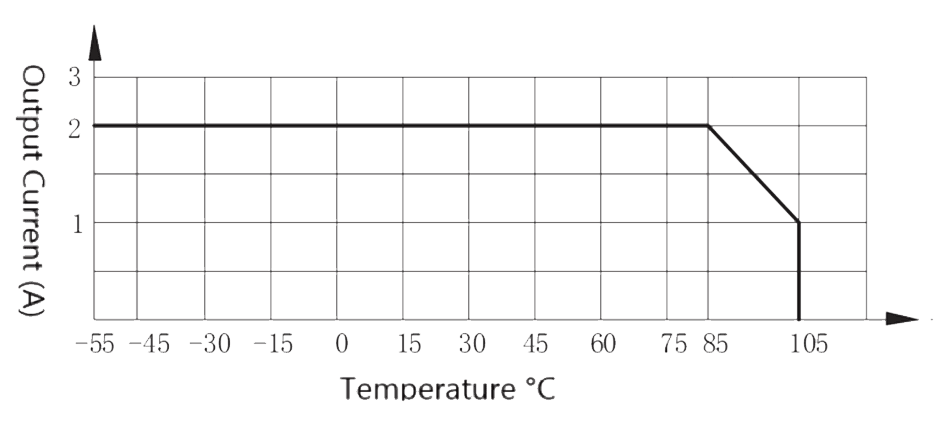

| Figure 2. Maximum output current vs. ambient temp. | |
 |
|
| Figure 3. Output voltage drop vs. temperature | Figure 4. Peak Surge Current vs. Surge Current Duration |
 |
 |
Mechanical drawings |
Bottom view Circuit |
 |
 |
Order Mark
Example: 4JG2-2 005Y
| 4 | JG | 2 | – | 2 | 005 | Y |
| Number of output channels | Solid relay main name | Rated output current | Design Number | Specifications No. (005 to 5V, 028 is 28V) | Screening level (Y or W) |
