AK-23 Specifications |
||
| Electrical Rating Resistive | 15×(1±10%)VDC、(4.5～5)mA | |
| Pre-travel PT(mm) | ≥ 1.9 | |
| Total Travel OT(mm) | ≤ 3.2 | |
| Operating Force OF(N) | ≤ 14.7 | |
| Consistency of action and release position (ms) | ≤60 | |
| Mechanical Life (cycles) | 12 000 | |
| Mechanical life (times) | 25 000 | |
| Actuating device strength (N) | 49 | |
| Insulation resistance (MΩ) | Normal | ≥1000 |
| Damp heat | ≥10 | |
| Contact resistance (mΩ) | initial | ≤50 |
| After mechanical life | ≤100 | |
| After electrical life, after temperature-altitude | ≤30 | |
| Dielectric withstand voltage (VAC) | Normal | 500 |
| Low pressure | 350 | |
| Overload cycle | Current (A) | 30 |
| Cycles | 50 | |
| Operating Temp (℃) | -55～85 | |
| Weight (g) | ≤ 20 | |

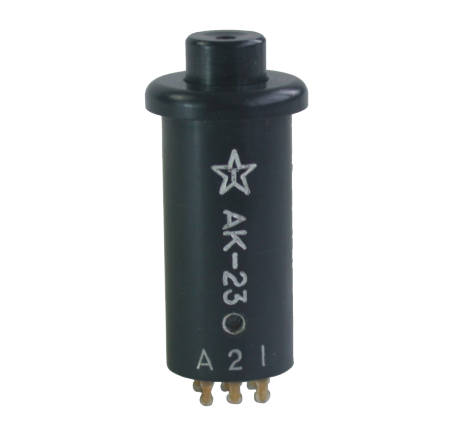

AK-23
AK-23 Aviation & Military Push Button Switch
1. Small size and light weight;
2. The built-in micro switch is WWK-11A, with high parameter accuracy;
3. Wide range of operating environment temperature: (-55～85)℃;
4. Electric life reaches 12000 times.
Standard: Meet GJB150-1986 military equipment environmental test method (part), GJB360A-1996 electronic and electrical component test method (part), GJB809A-1997 micro switch general technical specification (part), AK-23 special technical specification (internal)
