AK-25 Series Manual reset request switch Specifications |
|
| Electrical Rating | Switch 15±1.5VDC 、4.5～5mA (Inductive)
Light: 20±0.2VDC |
| Pre-travel (mm) | ≤2.5 |
| Overrun(mm) | ≥0.1 |
| Operating Force(N) | 14.7～29.4 |
| Operating Temp (℃) | -55～+95 |
| Weight (g) | ≤70 |
| Mechanical Life (cycles) | 1 2000 |
| Insulation Resistance (normal) MΩ | ≥1 000 |
| Insulation Resistance (damp heat) MΩ | ≥10 |
| Dielectric Withstand Voltage (normal) V ac | 500 |
| Salt fog (h) | 48 |
AK-25

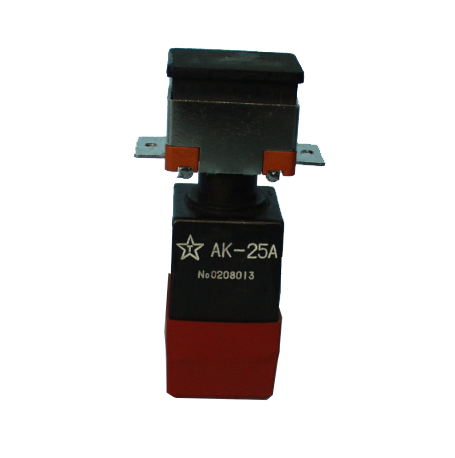

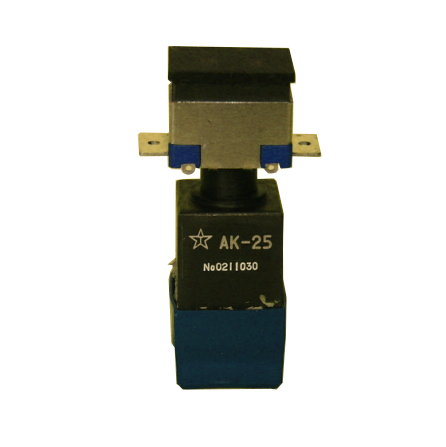

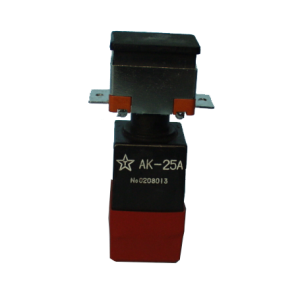

AK-25 Aviation & Military Push Button Switch
1. The operation feels comfortable;
2. The button has “reset” and “RESET” characters to choose from;
3. Long life and reliable work.
Standards: GJB360A-1996 electronic and electrical component test method (part), GJB150-1990 military equipment environmental test method, GJB809A-1997 general specification for micro switches, GJB455-1987 aircraft cabin lighting basic technical requirements and test methods, AK-25 Series Manual reset request switch technical specification.
