AK-34、AK-35 Specifications |
||
| P/N | AK-34 | AK-35 |
| Electrical load | Rated voltage: 27×(1±10%)VDC;
Rated Current: a)0.1A～5A (Resistive); b)0.1A～3A(Inductive, τ≤0.008s)。 |
|
| Pre-travel (mm) | ≤2.8 | |
| Overtravel(mm) | ≥0.3 | |
| Operating Force(N) | (10.8～24.5) | |
| Releasing Force(N) | ≥4.9 | |
| Weight (g) | ≤17 | |
| Mechanical Life (cycles) | 25000 | |
| Insulation Resistance (normal) MΩ | ≥1000 | |
| Insulation Resistance (damp heat) MΩ | ≥10 | |
| Dielectric Withstand Voltage (normal) V ac | 1000 | |
| Salt fog (h) | 96 | |
AK-34/AK-35

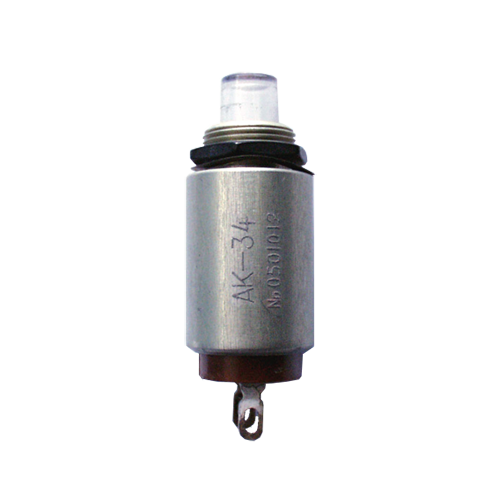

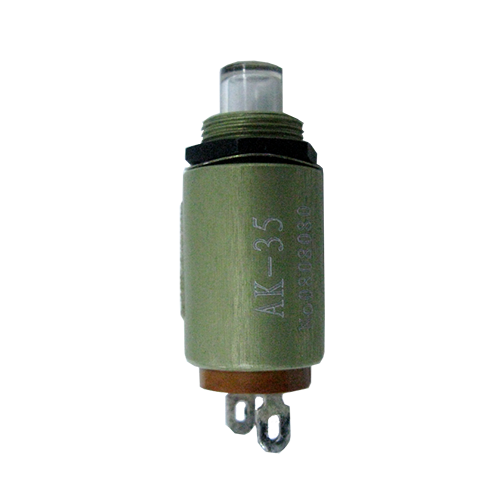

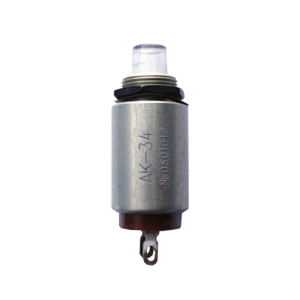

AK-34/AK-35 Military Push Button Switch
1. Large load capacity;
2. With instantaneous action function, the action is sensitive, and the parameter accuracy is high;
3. The electrical life reaches 25,000 times.
Standard: Meet GJB150-1986 military equipment environmental test method (part), GJB1512-82 button switch general specification, GJB360A-96 electronic and electrical component test method (part), AK-34, AK-35 button switch technical specifications.
