AK-46 Specifications |
|
| Electrical Rating | Rated voltage: 27VDC; Rated Current: 0.2A。 |
| Travel (mm) | ≤0.3mm |
| Overtravel OT (mm) | ≥3mm |
| Operating Force OF(N) | ≤12N |
| Releasing force RF(N) | ≥1.5N |
| Operating Temp (℃) | -55～70 |
| Weight (g) | ≤55 |
| Mechanical Life (cycles) | 50000 |
| Insulation Resistance (normal) MΩ | ≥100 |
| Insulation Resistance (damp heat) MΩ | ≥10 |
| Dielectric Withstand Voltage (normal) V ac | 500 |
| Salt fog (h) | 96h |
AK-46

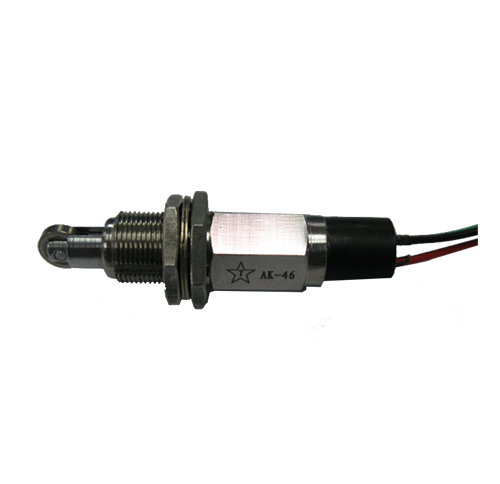

AK-46 Aviation & Military Push Button Switch
1. Large load capacity;
2. With instantaneous action function, the action is sensitive and the parameter accuracy is high;
3. Electric life reaches 50,000 times.
Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809A-97 micro switch general technical specification (part), AK-46 button switch special technical specification internal).
