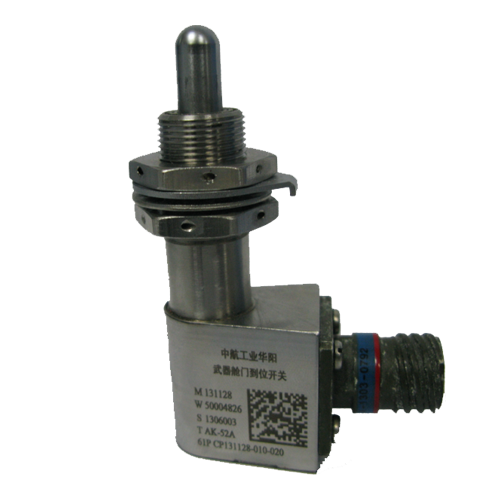

AK-52 Aviation & Military Push Button Switch

1. The product shell is made of stainless steel, which can withstand harsher mechanical and natural environments;
2. With instantaneous action function, the action is sensitive and the parameter accuracy is high;
3. Wide range of operating environment temperature: (-55～85)℃;
4. Electric life reaches 16000 times.
5. The specific characteristics and indicators of the product are based on the product-specific technical conditions.

Standards: GJB 150A-2009 military equipment environmental test methods (partial), GJB360A-1996 electronic and electrical component tests, GJB809A-1997 general technical conditions for micro switches, AK-52, 52A product specifications (internal)

Category:

AK-52、52A Specifications
Electrical Rating Resistive 15VDC、5mA
Pre-travel (mm) 2～3
Overrun(mm) ≥12
Total Travel Force(N) ≤10kg
Consistency of action and release position (ms) ≤60
Mechanical Life (cycles) 16 000
Insulation resistance (MΩ) Normal ≥500
Damp heat ≥2
Contact resistance (mΩ) initial ≤100
After electrical life ≤1% of rated electrical load resistance
Dielectric withstand voltage (VAC) Normal 1000
Low pressure 500
Overload cycle Current(mA) 50
Cycles 50
Operating Temp (℃) -55～85
Weight (g) ≤ 140
