BJQ-3 Hatch Alarm Specifications |
|
Electrical Rating Resistive | 15×(1±10%)VDC 、(4.5~5)mA |
Pre-travel PT(mm) | ≤ 2 |
Operating Temp (℃) | -55~+70 |
Weight (g) | ≤70 |
Mechanical Life (cycles) | 10000 |
Insulation Resistance (normal) MΩ | ≥1000 |
Insulation Resistance (damp heat) MΩ | ≥10 |
Dielectric Withstand Voltage (normal) V ac | 500 |
Salt fog (h) | 48 |
BJQ-3

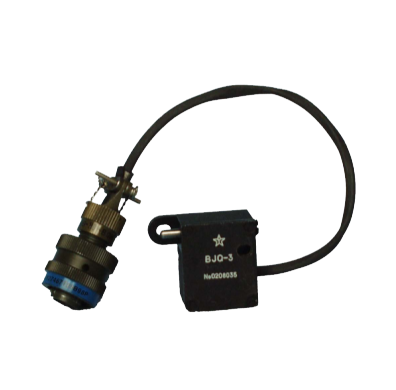

BJQ-3 Aviation & Military Push Button Switch
1. Effective protection for the flexible pressing of the built-in micro switch to avoid under-voltage or overvoltage;
2. Electric life reaches 10,000 times.
Standard: Meet GJB150-1986 military equipment environmental test method (part), GJB360A-1996 electronic and electrical component test method (part), GJB809A-1997 micro switch general specification (part), BJQ-3 hatch cover alarm special technical specification .
