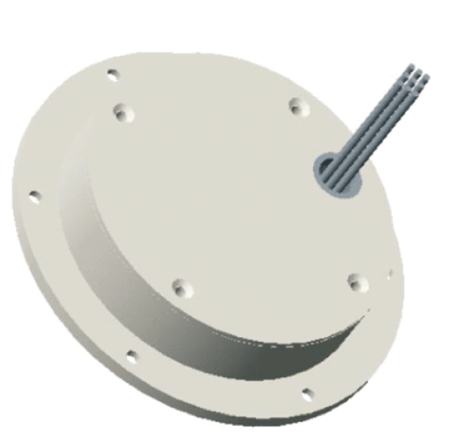

CANMK-A measurement module

Collect the output signal of the eddy current pressure sensor on the boat, and upload the collected data to the upper computer through the CAN bus.

Description

Main Function

Items Performance Remarks
Operating voltage range 18Vd.c.~32Vd.c.
Working/storage temperature range 0°C~50°C/-10°C~65°C
Input 24V power, 1-way 4mA~20mA sensor signal input;
Output 24V power supply for sensor, 2-way(1 way redundant) CAN communication interface;
Precision ±1.0%, under normal temp.
Power <3.5W
Other functions With function of ID node online setting and saving;
Environmental stress According to GJB1032
Structure / electrical interface Customized metal shell package/lead method
