GJN-06E

  1. Analog output
  2. Good repeatability indicators
  3. Wide load resistance range
  4. Square precise mounting flange
  5. Successful implementation of engineering applications

Description

GJN-06E-I GJN-06E-II
Measurement range (g) ±25 ±20
Partial value (mg) ≤4 ≤4
Temperature coefficient (μg/°C) ≤30 ≤50
Monthly comprehensive error (1σ) (μg) ≤30 ≤60
Scale factor (mA/g) 1.2 to 1.6 1.2 to 1.6
Temperature coefficient (10-6/°C) ≤40 ≤80
Monthly comprehensive error (1σ) (10-6) ≤50 ≤80
Second-order nonlinear coefficient (μg/g2) ≤15 ≤40
Threshold (μg) better than 5 better than 5
Resolution (μg) better than 5 better than 5
Input voltage (V) ± (12 ~ 18) ± (12 ~ 18)
Working temperature (°C) -45~+70 -45~+70
Weight (g) ≤70 ≤70

Environmental specification

Sinusoidal vibration Shock Storage temperature
20g (peak), 20Hz ~ 2000Hz; 100g, half sine, 8ms~12ms -55 ° C ~ +80 ° C

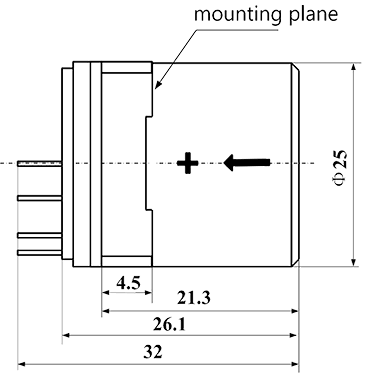

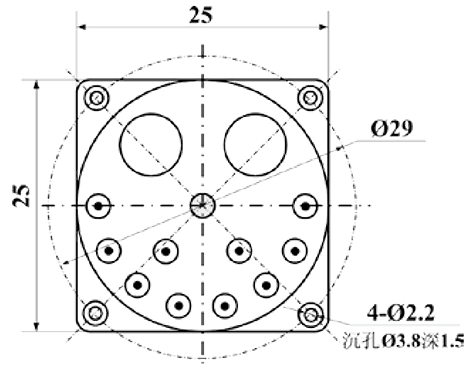

GJN-06E Drawings

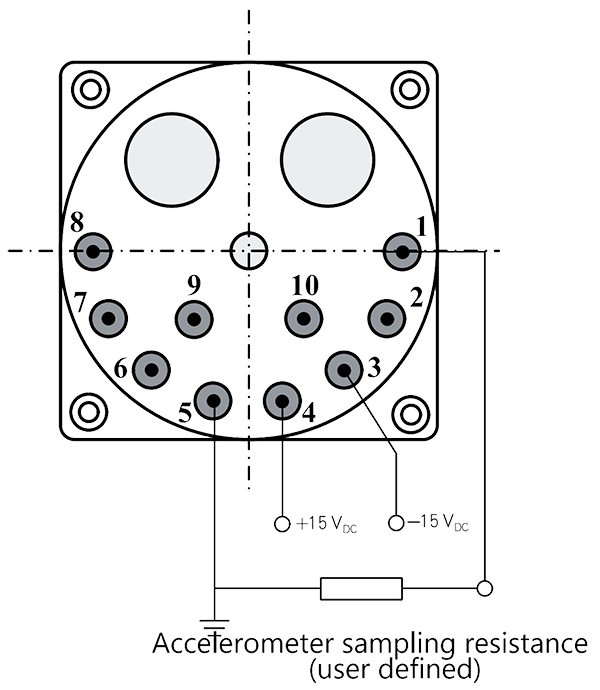

GJN-06E Wiring diagram
