I-FOG-25

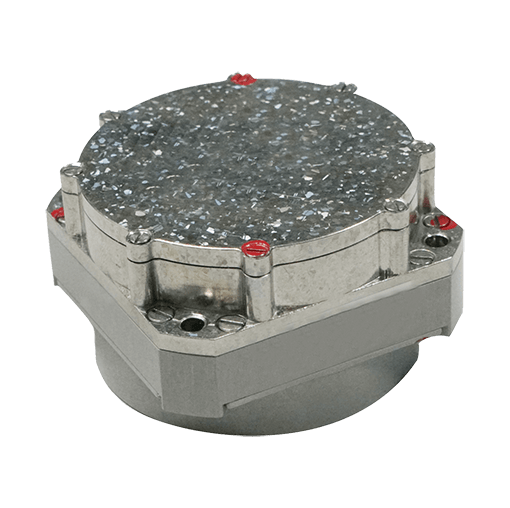

I-FOG-25 Series Military Gyroscope

The I-FOG-25 series which are typical medium-precision all-digital closed-loop fiber optic gyroscopes, have the characteristics of low power consumption and high measurement accuracy. The product has excellent anti-shock, anti-magnetic field performance and great resistance to temperature, and can adapt to various of environment.

The I-FOG-25 series fiber optic gyroscopes contain: I-FOG-25-A, I-FOG-25-B, and I-FOG-25-C, which cover full medium-precision measurement, and are small-volume medium-high-precision motion sensors which provide solutions for the fields of attitude control, navigation and alignment, etc.

◆ Features

➢ Superior performance in the same volume

➢ RS-422 output mode

➢ High reliability

➢ Standard commercial products

◆Applications

➢ Antenna, radar, optical stability control

➢ Turret and machine gun tower stability control

➢ IMU, INS system integration

➢ Stabilization and navigation of UAV

◆ Specifications

P/N	I-FOG-25-010	I-FOG-25-015	I-FOG-25-020
Bias Stability (10s, 1σ)	≤0.08°/h	≤0.15°/h	≤0.2°/h	1σ, 10s Smooth
Maximum Angular Velocity	±490°/s	±490°/s	±850°/s
Random Walk Coefficient	0.004°/√h	0.008°/√h	0.01°/√h
Peak-to-peak value (100s , 1σ) Before compensation	≤0.1°/h	≤0.2°/h	≤0.2°/h
Bias stability at full temperature (100s, 1σ) Before compensation	≤0.3°/h	≤0.5°/h	≤0.5°/h
Dead Zone (threshold)	≤0.1°/h	≤0.15°/h	≤0.2°/h
Scale Factor Nonlinearity	<25ppm
Frequency Bandwidth	>150Hz
Power Supply	±5V
Power Consumption	≤2.5W (Normal temperature) ≤3.5W (Full temperature)
Storage Temperature	-50°C-+75°C
Working Temperature	-40°C-+65°C
Output Mode	RS422			Can be customized according to user requirements
Output Delay Time	<2ms
Insulation Resistance	<100MQ
Size	50x50x32mm
Weight	<170g
