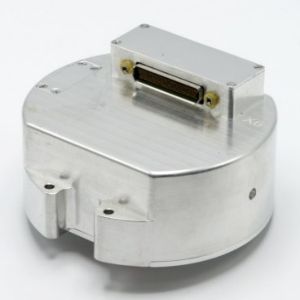

SD702 MEMS Integrated Inertial Navigation System

[av_button label=’Datasheet’ link=’manually,https://hao-ax.com/wp-content/uploads/2019/06/SD702.pdf’ link_target=’_blank’ size=’small’ position=’left’ label_display=” icon_select=’yes’ icon=’ue84d’ font=’entypo-fontello’ color=’theme-color’ custom_bg=’#444444′ custom_font=’#ffffff’ av_uid=” custom_class=” admin_preview_bg=”]

The product is composed of high precision MEMS gyroscope and accelerometer. The main features of the product are as follows:

  1. a) Full-navigation parameter output: carrier angular rate, attitude Angle, speed, position, etc.;
  2. b) Integrated navigation function: built-in GPS/BD receiver;
  3. c) Open computer function: all resources are available within SMJ320C6713, and JTAG is reserved for external use for pop-up control;
  4. d) Reserved multi-channel FIFO serial port and GPIO control signal: provide 7-channel full-duplex RS422 serial port, which can output instructions such as fuze control;
  5. e) External power supply: 5V/6W power supply is provided.

Description

SD702 MEMS Integrated Inertial Navigation System

Main Technical Specifications

Parameter Technical Specification
System Indicators Position Accuracy < 10m (1σ)
Heading Accuracy (180s) ≤ 2°
Horizontal Attitude Accuracy ≤ 2°
Start Time 2 s
Fiber Optic Gyro Indicators Zero Bias Stability (1σ, 100s) 30°/H
Scale Factor Repeatability (1σ) 0.1%
Measuring Range ±400°/S
Accelerometer Indicators Zero Bias Stability (1σ, 100s) 2 mg
Scale Factor Repeatability (1σ) 0.3%
Measuring Range ±18 g
Physical Indicators Volume ≤ Ф110mm ×59mm
Weight ≤ 0.5kg
Maximum Power Consumption ≤ 8W
Operating Temperature -40℃~ 65℃
Electrical Interface RS232、RS422、CAN
Power Supply Requirements 18 ~ 36 VDC
