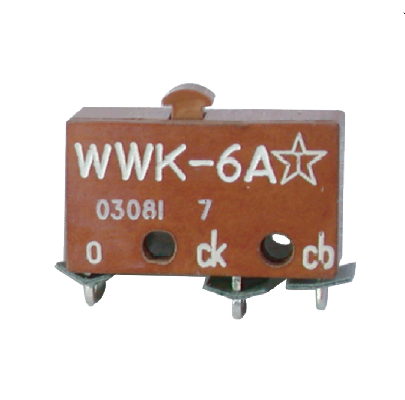

WWK 6A

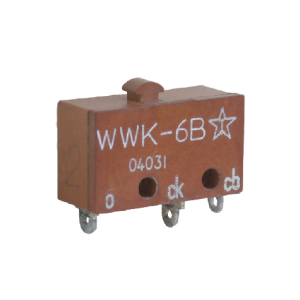

WWK 6B

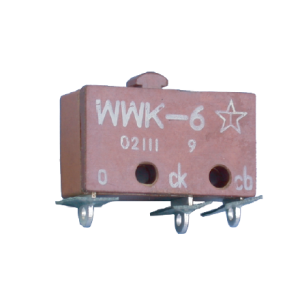

WWK 6

WWK-6 Series

WWK-6 Series Aviation & Military Micro Switch

1. Small size, light weight, large load capacity;
2. With instantaneous action function, the action is sensitive and the parameter accuracy is high;
3. The range of Differential Travel is 0.08m max;
4. Products using gold alloy contacts are suitable for low-power products;
5. Electrical life up to 10,000～50,000 cycles.

Standard: Meet GJB150-86 military equipment environmental test method (part), GJB360A-96 electronic and electrical component test method (part), GJB809A-97 micro switch general technical specification (part), WWK-6 Series micro switch special technology Specification (internal)

Category:

WWK-6 Series Micro Switch Specifications
P/N WWK-6 WWK-6A WWK-6B
Electrical Load Resistance  (27±10%) VDC 28.5 (1+10%) VDC 115 (1+10%) VAC 28.5VDC 5±0.5
1A 4A 3A 1A  (10+1) mA
Electrical Load Inductive  (27±10%) VDC 28.5 (1+10%) VDC 115 (1+10%) VAC 28.5VDC
0.5A (τ≤0.015s) 2A (τ≤0.015s) 2A(cos≥0.5) 2A (τ≤0.015s)
Pre-travel PT(mm) 0.17～0.5 ≤1.3 ≤1.3
Overtravel OT(mm) ≥0.2 ≥0.3 ≥0.3
Differential Travel DT(mm) ≤0.08 ≤0.8 ≤0.8
Operating Force OF(N) 0.98～1.96 ≤2.45 ≤2.45
Releasing Force RF(N) ≥0.392 ≥0.55 ≥0.55
Operating Temp.(℃) -55～+100 -55～+70 -55～+70
Weight ≤3.5g  (0.0032±0.0003) kg ≤0.0035kg
Electric Life (cycles) 50000 10000 10000 5000
Under Resistive Load Under Inductive Load
Insulation Resistance

(normal) MΩ

 ≥100 ≥1000 ≥1000
Insulation Resistance

(damp heat MΩ

 ≥2 ≥10 ≥10
Dielectric Withstand Voltage (VAC) 500 500 500
Salt Spray (h) 48h 48 48
