XNK-2

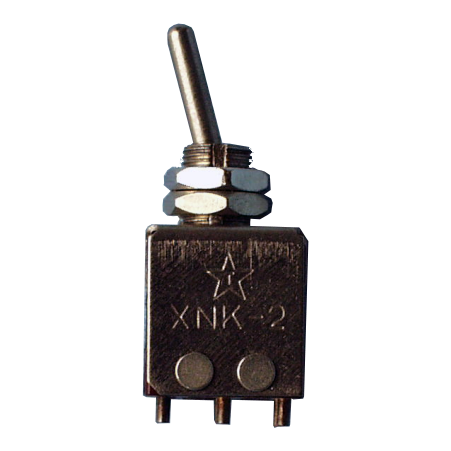

XNK-2 Aviation & Military Toggle Switch

1. Small size and light weight;
2. With instantaneous action function. Sensitive action;
3. Wide Operating Temp.: (-55~85)℃;
4. Electric Life reaches 10000 cycles;

Category:

XNK-2 Specifications

Electric Load Resistive 27VDC、5A
Operating Force OF(N) 14.7
Electric Life (cycles) 10 000
Insulation resistance (MΩ) Normal ≥20
Heat Damp ≥2
Contact resistance (mΩ) Initial ≤18
After Electric Life ≤36
Dielectric Withstand Voltage (VAC) 500
Overload Cycle Current (A) 10
Overload Time (s) 120
Operating Temp. (℃) -55~85
Weight (g) ≤ 14
