Y17 Series Circular Connector

  1. It adopts bayonet connection, which is convenient to use and reliable to lock.
  2. Widely applicable to circuit connections between various electrical equipment.
  3. Enterprise Standard: Q/Lkt.J(02)16-2012
Category:

Description

Y17 Series Electrical Connector

Environmental Specifications

Mechanical Specifications

Operating temperature

-55 to +125°C Housing High-strength aluminum alloy material

Relative humidity

90-95% at 40±2°C Plating Natural color anodizing
Working attitude 30000 m

Insulator

Heat resistant thermoplastic

Vibration 10Hz~2000Hz, 196 m/s2 Contact

Copper alloy material

Shock 490 m/s2 Plating

Gold

Constant acceleration 490 m/s2 Mechanical life

500 times

Electrical Specifications

  • Characteristics of contact

Contact specifications (mm)

Contact resistance (mΩ) Rated current (A)

Φ1.5

≤3 10

Φ2.5

≤1 25

Φ3.5

≤1 50

Φ5

≤1

75

Φ7 ≤1

100

Φ10 ≤1

200

  • Rated voltage, withstand voltage and insulation resistance

Working Environment

Rated voltage (V) Withstand Voltage (V) Insulation Resistance (MΩ)

Normal Temperature and pressure

500 1500 ≥ 1000
High temperature and humidity 300 300

≥ 20

High temperature

250

≥ 500
Low air pressure: 4.39kpa 150 250



Ordering Format

Example: Y17-1204ZJ10-2a

Y17 12 04 Z J 10 2a
Main code:

  • Y17 series round sealed electrical connector
Y17
Shell number:

  • 10, 12, 16, 20, 28;
12
Number of contacts:

  • 01, 03, 04, 07, 12, 19, 24;
04
Housing type:

  • T – plug;
  • Z – socket;
Z
Contact type:

  • J-pin;
  • K-jack;
J
Socket installation method and plug cable cover form:

Socket installation method:

  • 10 – Square flange type;
  • 11 – Round flange type;

Plug cable cover form:

  • 2 – Clip plate type:
  • 2a – Large clamping plate type (only Shell No. 20);
  • 2b – Small clamping plate type (only Shell No. 20);
  • 3 – Potting type;
  • 4 – Right angle;
  • 5a – Heat shrinkable tube type 2;
  • 5 – Heat shrinkable tube type 1;
10
socket cable cover form:

  • 2 – Clip plate type;
  • 2a – Large clamping plate type (only Shell No. 20)
  • 2b – Small clamping plate type (only shell No. 20);
  • 3 – Potting type;
  • 4 – Right angle;
  • 5a – Heat shrinkable tube type 2;
  • 5 – Heat shrinkable tube type 1;
2a



Dimension

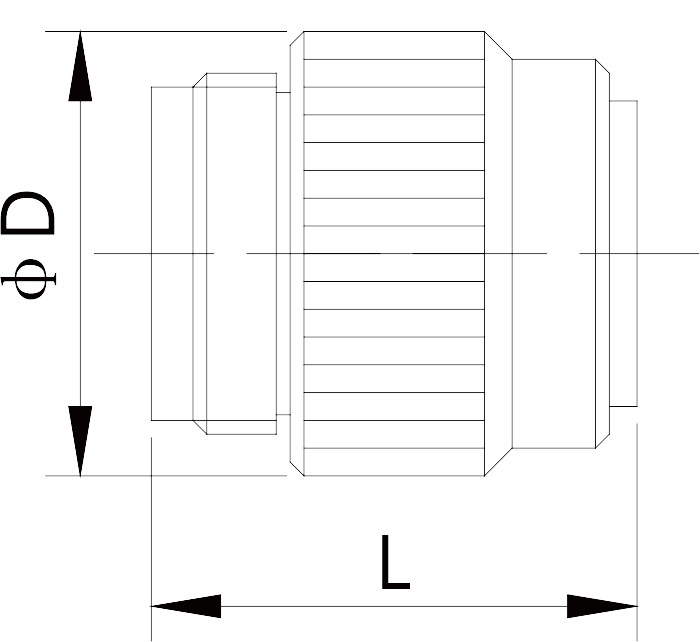

Plug

shell No. D L
10 22.5 31.5
12 26.5 31.5
16 33 31.5
20 39 31.5
28 2804 52 34
2824 31.5



Socket

Shell No. D D1 D2 d A B
10 18.5 17.5 16 3.4 24 18±0.2
12 22.5 21.5 20 3.4 27 21 ±0.2
16 29.5 27.5 26 3.4 32 26±0.2
20 35.5 33.5 32 5.5 42 33±0.2
28 50 45.5 44 5.5 53 42±0.2



Round flange socket

Shell No. D D1
16 31 26
20 36 32



Potted cable cover

Shell No. D d L
10 18.5 9 18
12 22.5 13 18
16 29.5 17 28.5
20 35.5 23 28.5



Cable clamp cover plate

Shell No. D d L
10 18.5 7 17
12 22.5 10 17
16 29.5 13.5 25
20 Large clamping plate 35.5 20 26.5
Small clamping plate 15.5 23
28 50 29 36.5



Heat shrinkable tube cable cover

Shell No. D1 L1 D2 L2 D
10 10 27 10 33 23
12 13 30 15 33 26
16 18 32 18 33 32
20 24 35 27.7 33 38



Right angle cable cover

Shell No. D d L H
16 29.5 13 34 24.5
20 35.5 16 37 27.5



Contact arrangement

1003 1204 1207

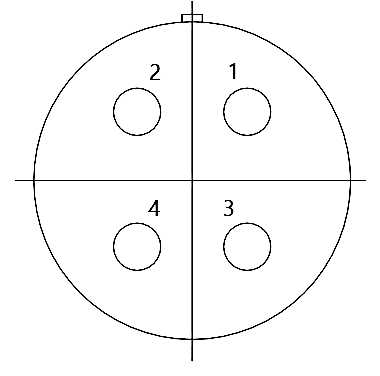

1601 1604 1612
2004 2012(I) 2012(II)

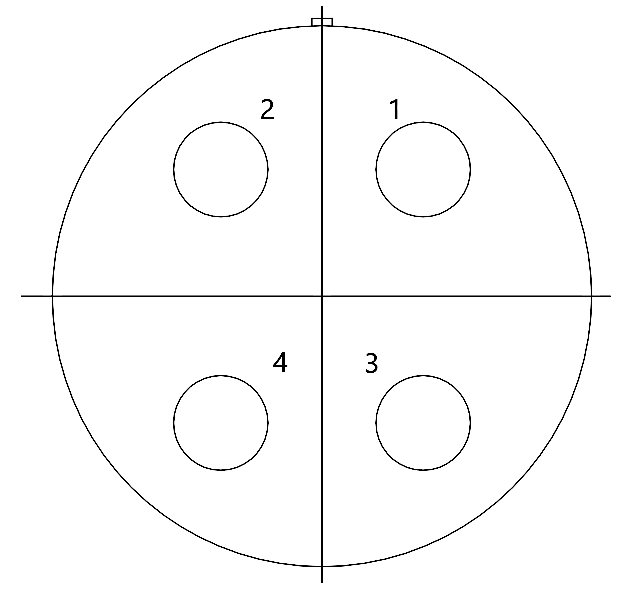

2019 2804 2824



Contact arrangement No. Number of contacts and diameter Working current (A)
1003 3-Φ1.5 10
1204 4-Φ2.5 25
1207 7-Φ1.5 10
1601 1-Φ10 200
1604 4-Φ3.5 30
1612 12-Φ1.5 10
2004 4-Φ5 75
2012 8-Φ1.5 10
4-Φ3.5 50
2012 6-Φ1.5 10
6-Φ2.5 25
2019 19-Φ1.5 10
2804 4-Φ7 100
2824 14-Φ1.5 10
10-Φ2.5 25



Accessory

Adjustable wrench(Y17-FJ1) Socket holder(Y17-FJ2)
